Project Detail: Wincom small (2U) server

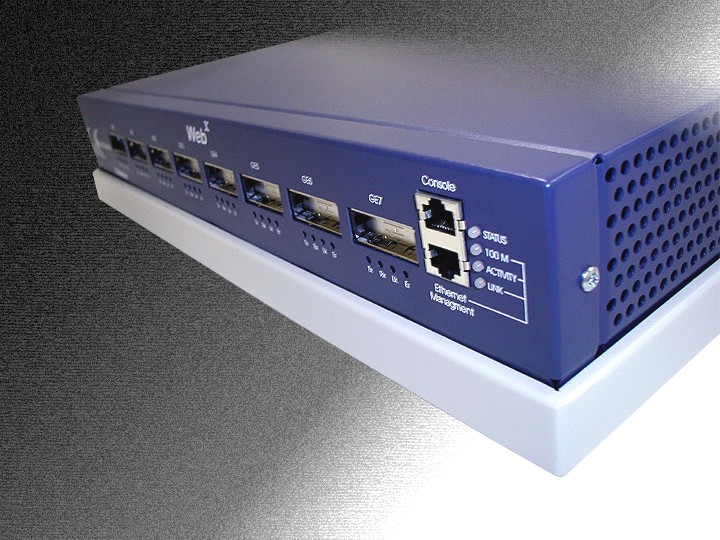

Wincom's small server was designed to be visually different from a standard 2U enclosure.

Fayram Design created the slight step-out bottom in a contrasting color to provide a unique identity.

The step also defined how the unit is assembled in terms of part sequence.

Fayram Design also worked out the assembly, cooling and RFI containment issues.

Fabricated of cold rolled steel sheet metal.

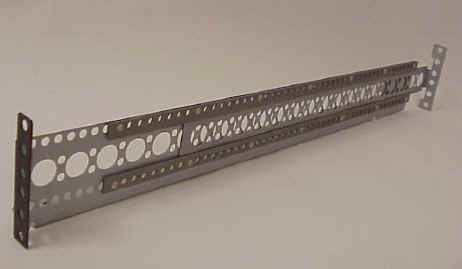

Custom rack slides were also developed by Fayram Design which allow the unit to be mounted in a thin depth rack frame when needed.

The slides members can by-pass each other so that the ears can secure to the vertical supports, evenwhen the supportd sre closer than the servers depth.
